Installation
SPRINTER
Front Windows

2019+ Rear Doors Set
1. Locate the pack(s) of metal clips in the package.
2. Identify where the clips need to go by holding shade up to window.
Find the magnet locations inside the shade by feeling for them at the black edge binding surrounding the shade.

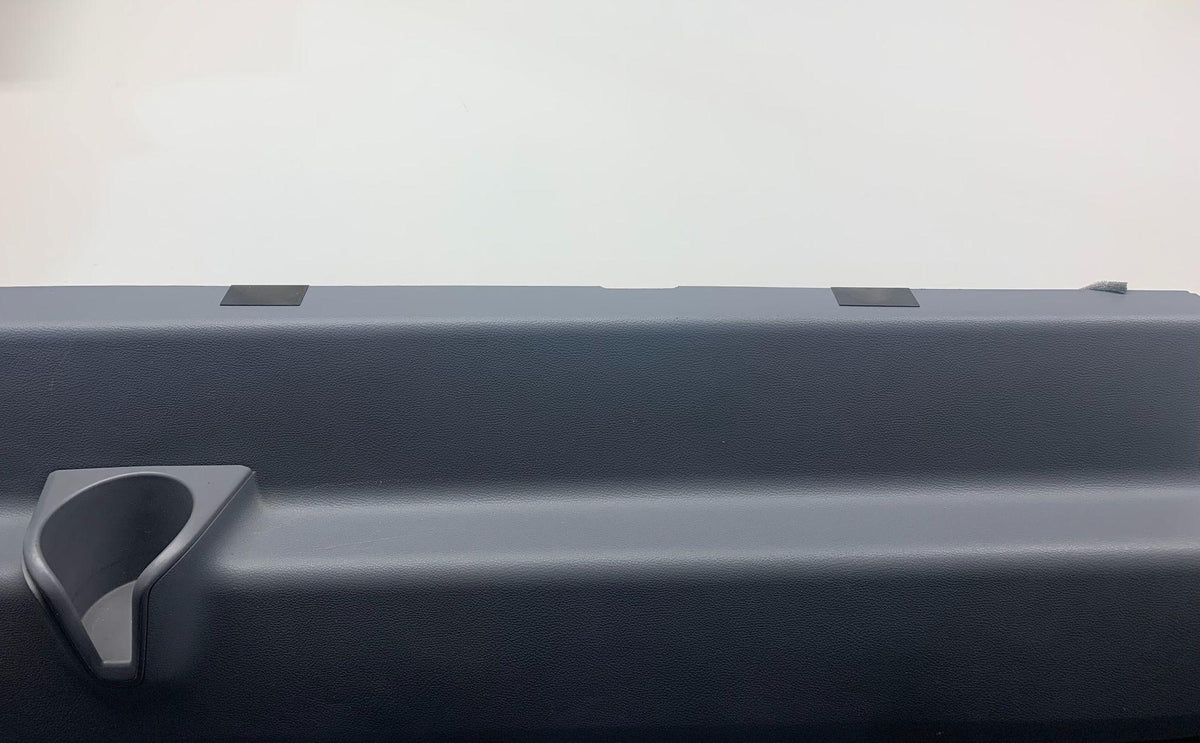

3. Carefully hook the short end of the clip under the plastic trim, then pull it tight against the panel.
Repeat this step for all clips. If something behind the plastic trim is preventing the clip from mounting, mount it nearby and slide the magnet inside the shade to align with the clip.
4. Once all clips are mounted, your shade will magnetically stick to your window trim.
Visit Vanmade Gear's Youtube channel for a walk through of this product.

Revel Side Windows

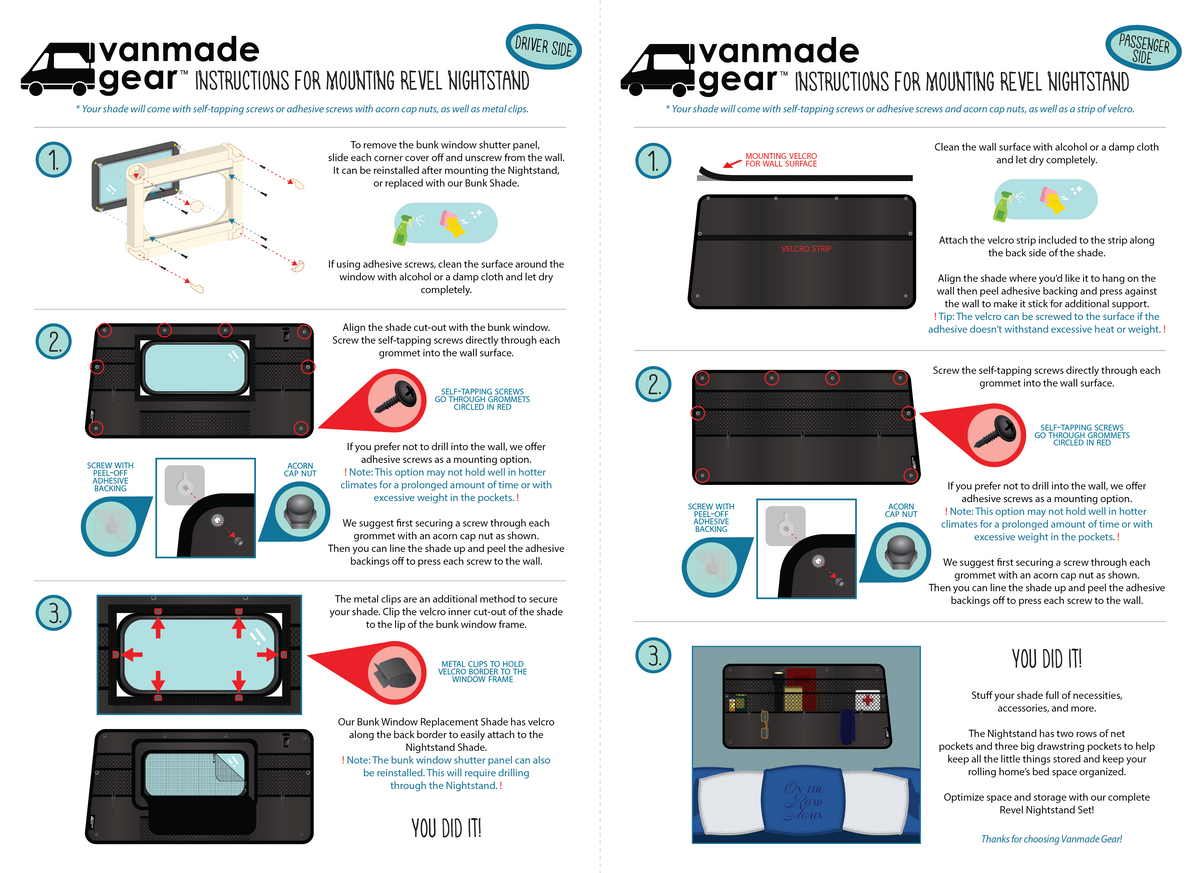

Revel Nightstand

Cab Partition
Visit Vanmade Gear's Youtube channel for a walk through of this product.
Storyteller Groove Lounge
Visit Vanmade Gear's Youtube channel for a walk through of this product.
No Mirror Windshield Tabs

TRANSIT
Front Windows

Crew Van Slider Door / Driver's Mid Panel
1. Locate the pack(s) of metal clips in the package.
2. Identify where the clips need to go by holding shade up to window.
Find the magnet locations inside the shade by feeling for them at the black edge binding surrounding the shade.

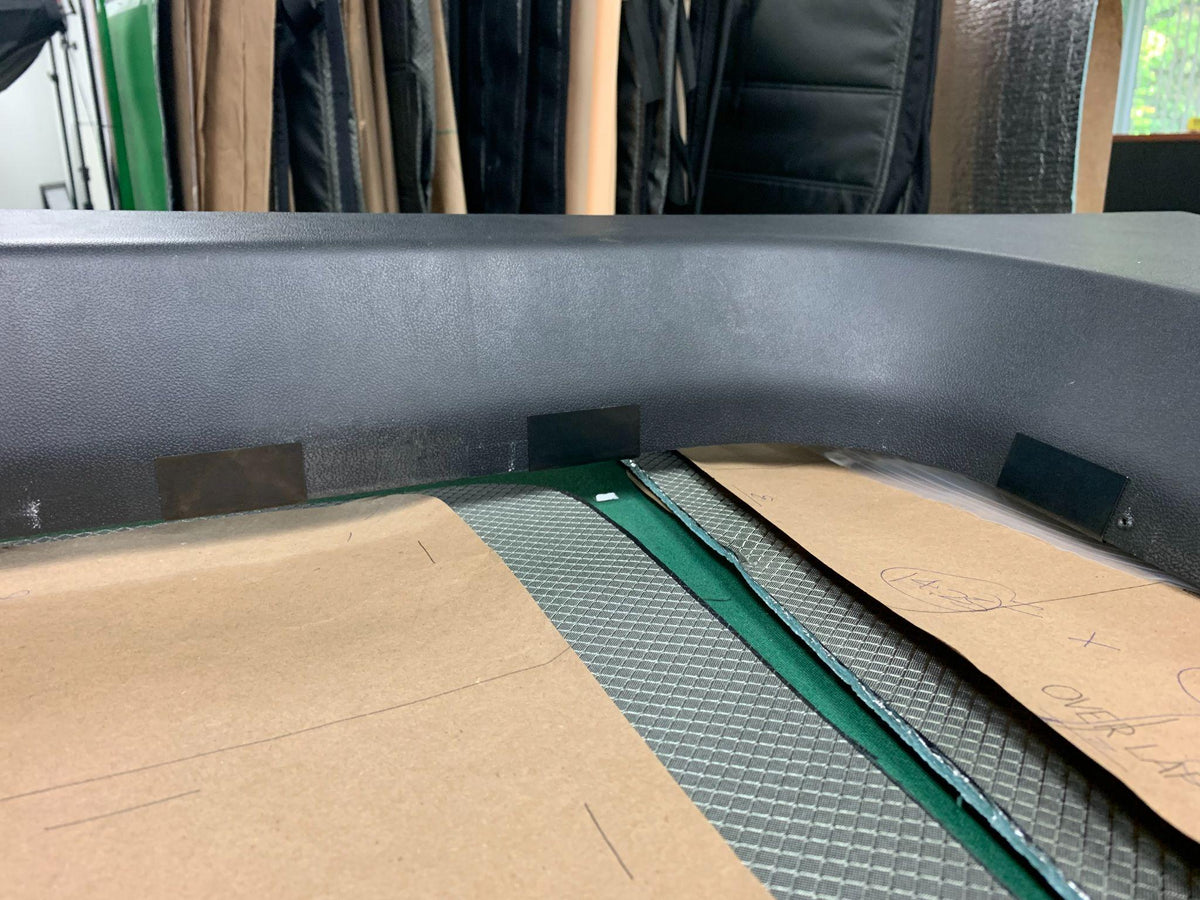

3. Carefully hook the short end of the clip under the plastic trim, then pull it tight against the panel.
Repeat this step for all clips. If something behind the plastic trim is preventing the clip from mounting, mount it nearby and slide the magnet inside the shade to align with the clip.
4. Once all clips are mounted, your shade will magnetically stick to your window trim.
Visit Vanmade Gear's Youtube channel for a walk through of the clips.

Cab Partition
Visit Vanmade Gear's Youtube channel for a walk through of this product.
Ekko Side Windows

Transit Passenger Series
PROMASTER
Front Windows

Pre-19 Travato K Bed Shade Set
Package contents:
- 2x Vanmade Gear shade for pre-19 Travato K bed windows
- Adhesive-backed Velcro (pre-attached to shade)
- 6x adhesive-backed metal tabs
Tools required:
- Philips’s head screwdriver (battery powered)
Installation Instructions:
1. Removal of MCD roller shade is optional but will make installation of Vanmade Gear shade much easier, specifically along the top edge.
2. Prepare surface for mounting Velcro: clean window frame (where the screws are) and confirm that the entire frame is dry before starting
3. Velcro strips need to be applied to the LEFT, BOTTOM, and RIGHT edges of this window.
- Pick one end of your window frame to start with and remove the first screw
- Separate Velcro from the main shade and unpeel 5-6" of the backing (do not unpeel all of it at once)
- Based on where the corresponding Velcro on the Vanmade Gear shade will touch, stick Velcro to window frame, covering the first screw hole
- Put screw back into the hole, THROUGH the Velcro and then tighten screw.
- Continue along the rest of the edges, one screw at a time, unpeeling the Velcro as you go and replacing/tightening the screw after covering with Velcro. Do not remove all the screws at the same time, (they are designed to clamp the window to your van so we don't want that to fall out!)
4. Install 6 metal tabs across the TOP edge of window frame.
- Feel for where each of the magnets are located inside the Vanmade Gear shade and gauge where it touches on the window frame
- Unpeel the red backing and carefully stick the tab to the window frame. Try not to touch the sticky backing, as oils from fingers can prevent it from sticking well.
- Hold firm pressure on each tab for 20 seconds
5. Installation complete! Attach your Vanmade Gear shade and enjoy!
THOR Rize/Sequence/Tellaro/Scope Slider Door
PACKAGE CONTENTS:
4 strips adhesive steel (2 long, 2 short)
INSTALLATION INSTRUCTIONS:
1. Clean your window and make sure it’s dry before proceeding and make sure temperatures are >=50°F.
2. Install the adhesive steel strips to top, side, and bottom edges of the glass (long strips on top & bottom, short strips on sides):
a. Test fit and trim as needed.
b. Before unpeeling adhesive backing, position steel strip to the top edge of the glass.
c. Once in position, slowly remove backing by pulling it straight down while holding the entire strip against the window. The strips can overlap at the corners of the window, in order to hide all the raw edges of the strip. Repeat this for the sides and bottom.
3. You have now created a metal frame for the magnets in the shade to attach to! Attach your Vanmade Gear shade and enjoy!
UNIVERSAL
Roof Vent Cover

Metal Mounting Tabs
